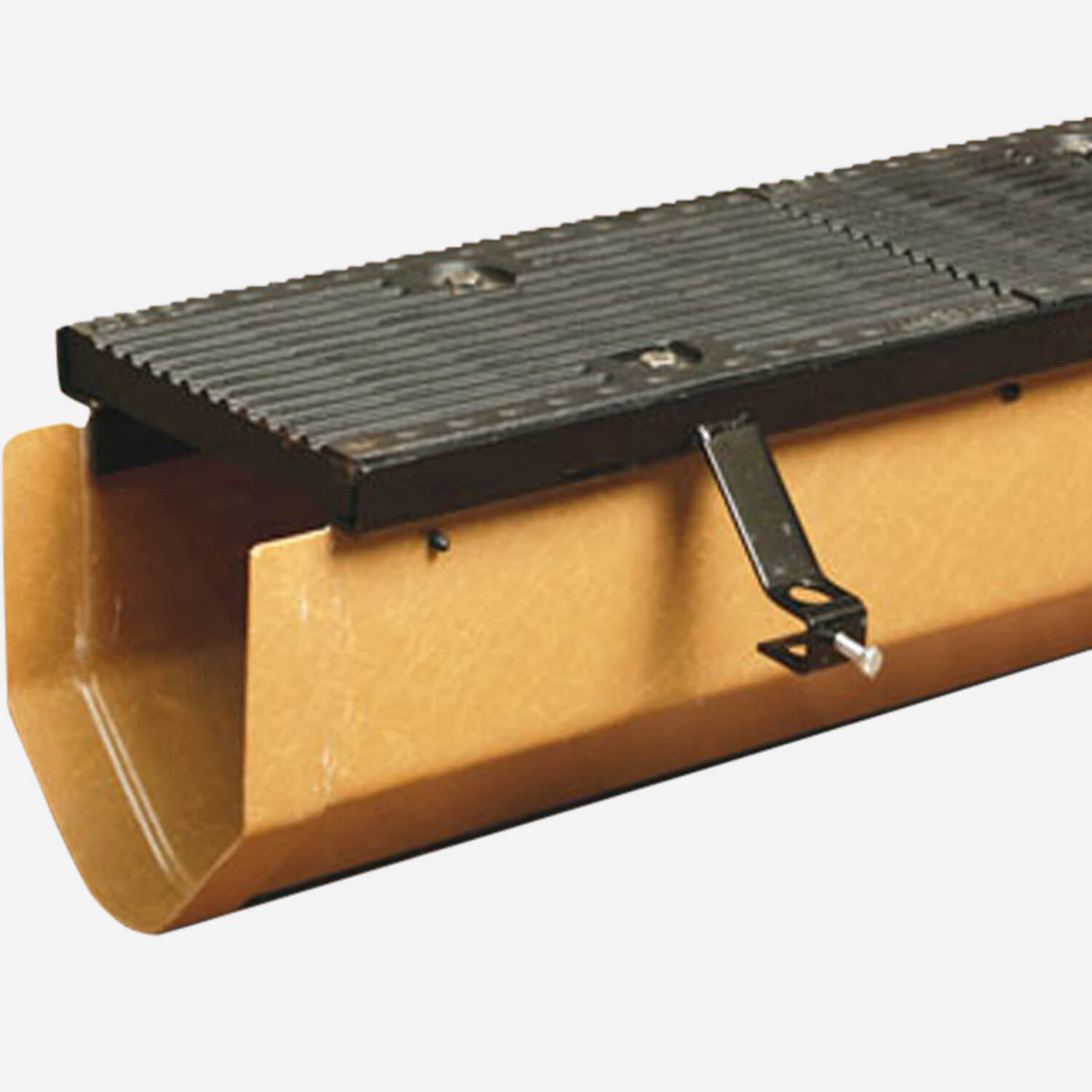

10″ Wide High Capacity Pre-Sloped Fiberglass Trench Drain System

These 10” wide, high capacity, pre-sloped, fiberglass trench drains are ideal for industrial plants, warehousing, bottling plants, food service, and loading docks. They are durable, high strength, lightweight, and corrosion-resistant.
Trench Drain Features
9′ long, high capacity channel
Polyester fiberglass construction is standard; vinylester fiberglass optional for additional corrosion resistance
Channel depth from 6.88″ to 20.38″
Duco coated welded steel frame support system with concrete anchors (one pair every 18 inches)
Painted, fabricated steel angle in Z pattern
Rebar/all thread elevation setting option built into frame
Push fit frame and channel assembly
Galvanized steel frame optional
Wide variety of grate options (see options linked below)
Supplied with secured load class “E” ductile iron slotted grate
Outlets can be located anywhere along bottom of channel
Accessory Components
Catch basins
Universal end caps
Universal outlet caps
4”, 6” and 8” bottom outlets provide a high degree of flexibility when designing the system
Custom outlets are available upon customer request.
Grate Load Class C & E
Heavy Duty Class C: 56,000 lbs – 1,162 psi for commercial pneumatic tire traffic patterns, forklifts, and tractor tires
Extra Heavy Duty Class E: 135,000 lbs – 2,788 psi for commercial solid tire traffic patterns, forklifts and impacts from steel struts or metal wheels
