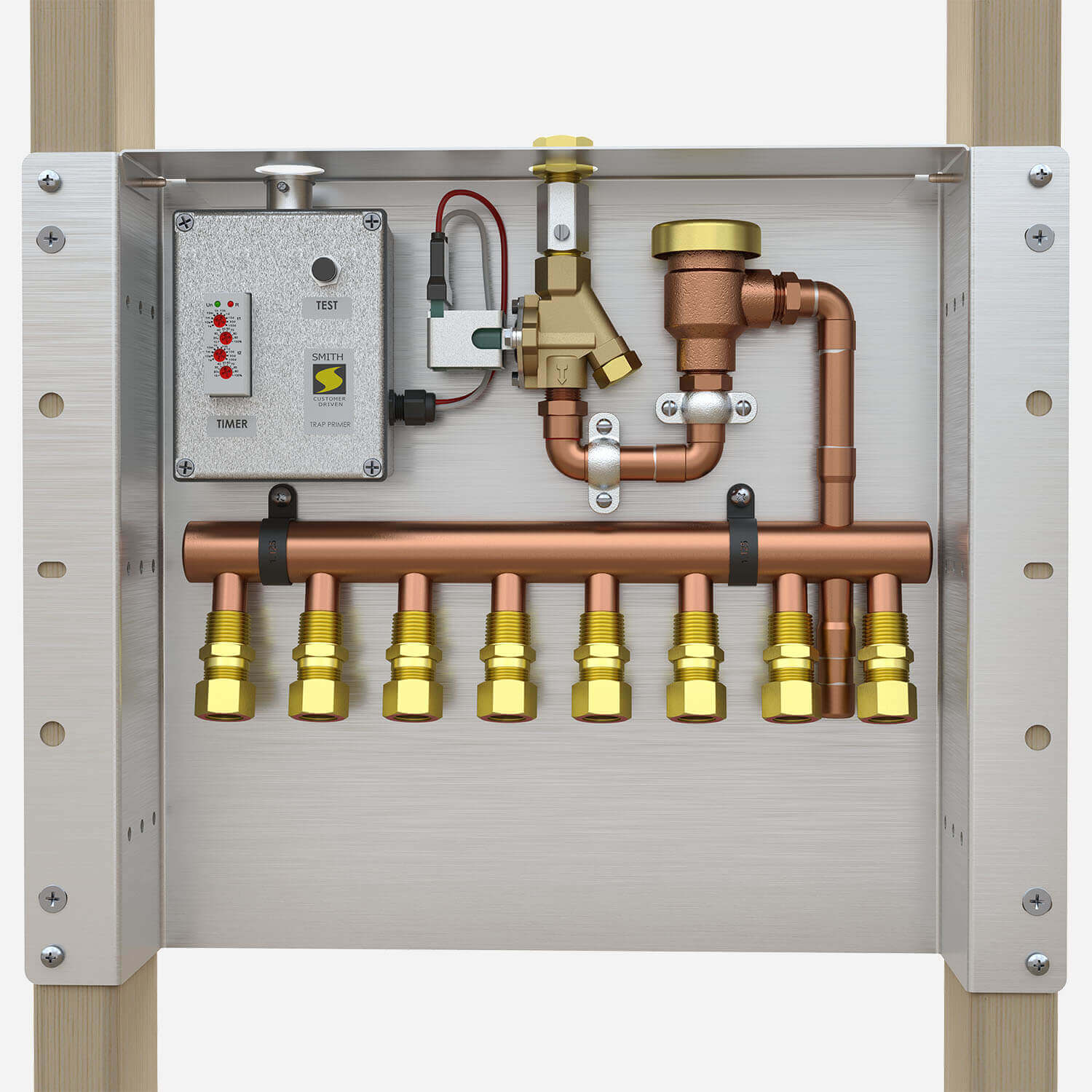

Electronic Trap Primer in Flush Mount Enclosure

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap to ensure the traps maintain a water seal. Flush Mount or recessed Electronic Trap Primer mount flush with the finished wall.
Flush Mount (Recessed) Trap Primers feature:
A multi-port outlet assembly primes 4 to 36 traps.
A factory pre-set timer is programmed to discharge water to the trap every 24 hours.
The steel recessed mounting enclosure fits between studs, 16-inches (40.64 cm) on center.
An optional cover or hinged access door is available.
Compatible with Building Management System (BMS)
Consists of shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold
ASSE, IAPMO (UPC), and IAPMO EGS (UL 1951) Listed
Available in 270FM, 271FM, 272FM configurations (see figure list below)
