Electronic Trap Primer in Surface Mount Enclosure with Push-in Fittings

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap ensure the traps maintain a water seal. Surface mounted electronic trap primer mounts on the finished wall.
Surface Mount Electric Trap Primers feature:
A multi-port outlet assembly primes 4 to 36 traps
A factory pre-set timer is programmed to discharge water to the trap every 24 hours

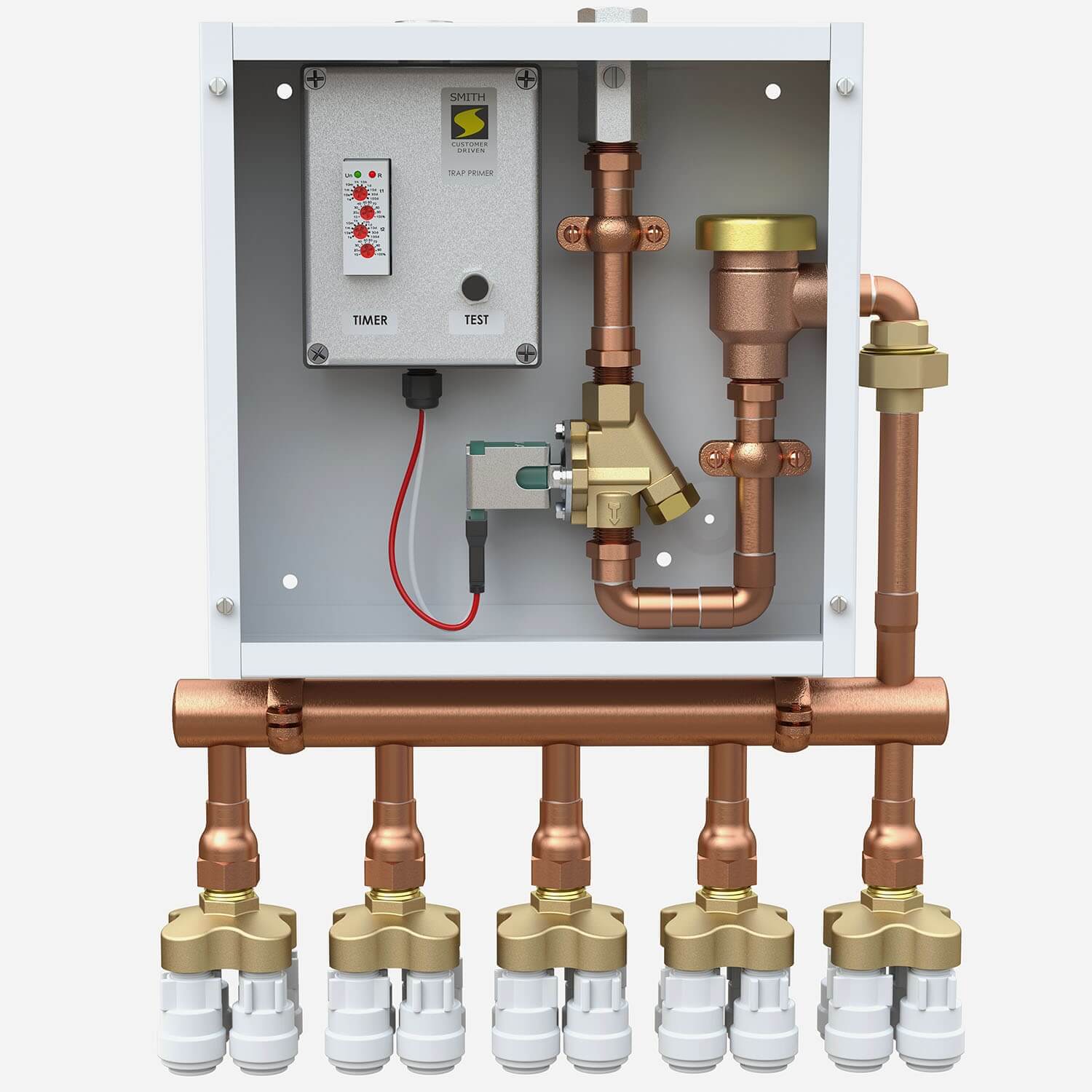

The assembly includes a steel NEMA Type 1 surface mount enclosed box, shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold.
-CTS suffix provides push-in connections for faster installation
Compatible with Building Management System (BMS)
Available in 271SM-CTS and 272SM-CTS configurations (see figure list below)
