Roof and Overflow Drain with Deck-Top Mounting Plate

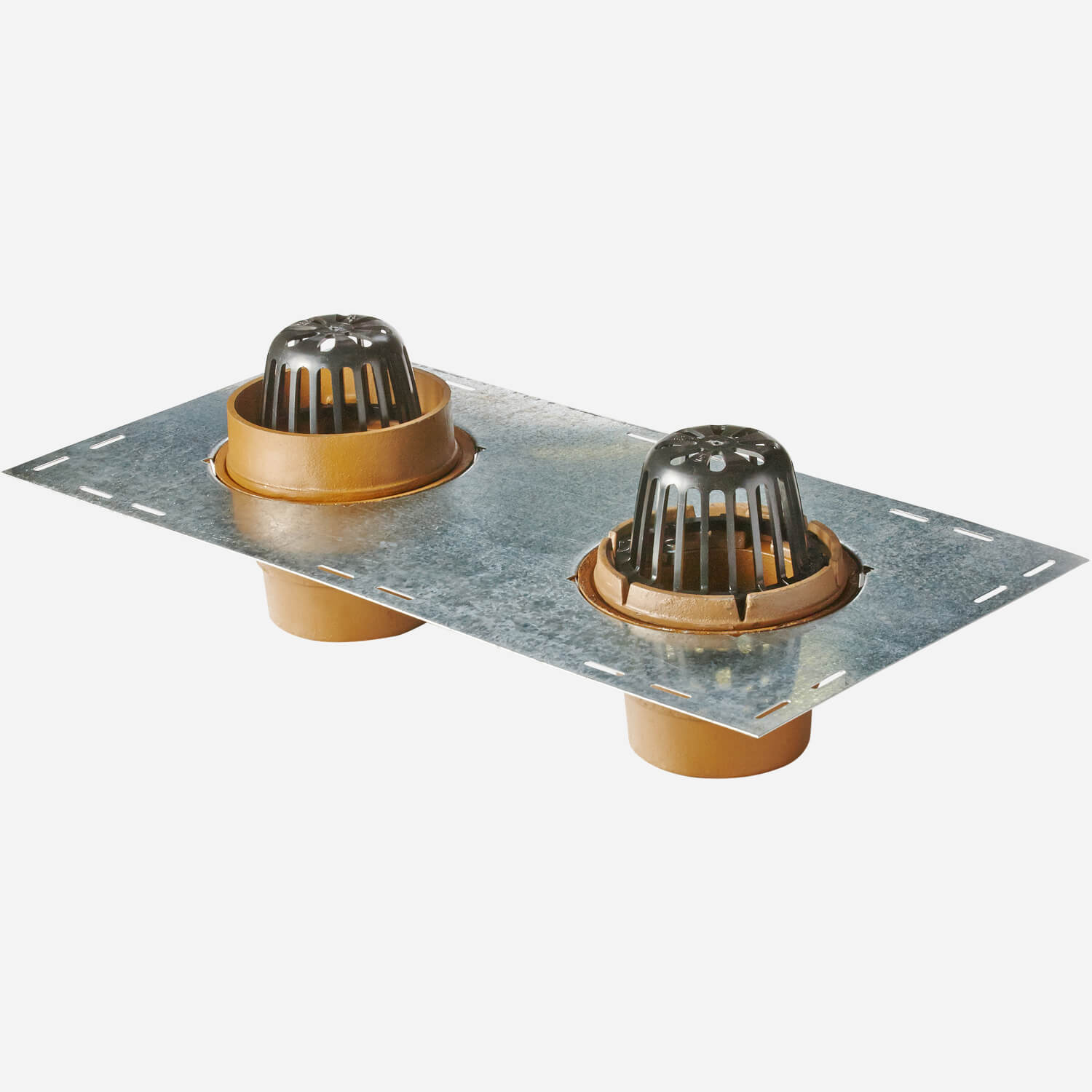

Figure 1830 Series is engineered to save installation costs, the roof and overflow drains of this unit are attached to a single deck plate. This permits both 8-1/2” drains to be secured to the roof deck from above the roof, eliminates the need for an underdeck clamp, and requires only one roof penetration. The roof drain has a combined flashing clamp and gravel stop. The overflow drain is fitted with a combined flashing clamp and 2” water dam. Both are constructed of Duco coated cast iron and are protected by polyethylene dome strainers.
Figure 1831 offers high profile cast iron domes the assembly is mounted on compact 19″ x 10-1/2″ mounting plate.
